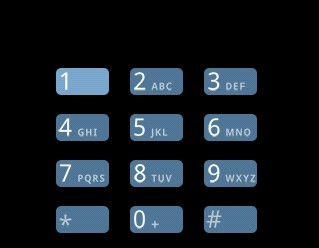

 * 自定義一個4*3的撥打電話的布局控件,
 *
 *
 */
public class MyPhoneCard extends ViewGroup{

  private static final int COLUMNS = 3;
  private static final int ROWS = 4;
  private static final int NUM_BUTTON = COLUMNS*ROWS;

  private View[] mButtons = new View[NUM_BUTTON];

  private int mButtonWidth;
  private int mButtonHeight;
  private int mPaddingLeft;
  private int mPaddingRight;
  private int mPaddingTop;
  private int mPaddingBottom;
  private int mWidthInc;
  private int mHeightInc;
  private int mWidth;
  private int mHeight;

  public MyPhoneCard(Context context) {
    super(context);
  }

  public MyPhoneCard(Context context, AttributeSet attrs){
    super(context,attrs);
  }

  public MyPhoneCard(Context context, AttributeSet attrs, int defStyle){
    super(context,attrs,defStyle);
  }

  /**
   * 當從xml將所有的控件都調入內存后，觸發的動作
   * 在這里獲取控件的大小，并計算整個ViewGroup需要的總的寬和高
   */
  @Override
  protected void onFinishInflate(){
    super.onFinishInflate();
    final View[] btns = mButtons;

    for(int i=0; i<NUM_BUTTON; i++){
      btns[i] = this.getChildAt(i);
      btns[i].measure(MeasureSpec.UNSPECIFIED, MeasureSpec.UNSPECIFIED);
    }

    //緩存大小
    final View child = btns[0];
    mButtonWidth = child.getMeasuredWidth();
    mButtonHeight = child.getMeasuredHeight();
    mPaddingLeft = this.getPaddingLeft();
    mPaddingRight = this.getPaddingRight();
    mPaddingTop = this.getPaddingTop();
    mPaddingBottom = this.getPaddingBottom();
    mWidthInc = mButtonWidth + mPaddingLeft + mPaddingRight;
    mHeightInc = mButtonHeight + mPaddingTop + mPaddingBottom;

    mWidth = mWidthInc*COLUMNS;
    mHeight = mHeightInc*ROWS;

    Log.v("Finish Inflate:", "btnWidth="+mButtonWidth+",btnHeight="+mButtonHeight+",padding:"+mPaddingLeft+","+mPaddingTop+","+mPaddingRight+","+mPaddingBottom);



  }

  /**
   * 這個方法在onFinishInflate之后，onLayout之前調用。這個方面調用兩次
   */
  @Override
  protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec){
    super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    Log.v("ViewGroup SIZE：width=", mWidth+"");
    Log.v("ViewGroup SIZE: height=",mHeight+"");
    final int width = resolveSize(mWidth, widthMeasureSpec);//傳入我們希望得到的寬度，得到測量后的寬度
    final int height = resolveSize(mHeight,heightMeasureSpec);//傳入我們希望得到的高度，得到測量后的高度
    Log.v("ViewGroup Measured SIZE: width=", width+"");
    Log.v("ViewGroup Measured SIZE: height=", height+"");
    //重新計算后的結果，需要設置。下面這個方法必須調用
    setMeasuredDimension(width, height);
  }

  /**
   * 這個方法在onMeasure之后執行，這個自定義控件中含有12個子控件（每個小鍵），所以，重寫這個方法，
   * 調用每個鍵的layout，將他們一個一個布局好
   * 就是4*3的放置，很簡單，一個嵌套循環搞定
   */
  @Override
  protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
    final View[] buttons = mButtons;
    int i = 0;
    Log.v("BOTTOM:", bottom+"");
    Log.v("TOP", top+"");

    int y = (bottom - top) - mHeight + mPaddingTop;//這里其實bottom-top=mHeight,所以y=mPaddingTop
    Log.v("Y=", y+"");
    for(int row=0; row<ROWS; row++){
      int x = mPaddingLeft;
      for(int col = 0; col < COLUMNS; col++){
        buttons[i].layout(x, y, x+mButtonWidth, y+mButtonHeight);
        x = x + mWidthInc;
        i++;
      }
      y = y + mHeightInc;
    }
  }

}

<?xml version="1.0" encoding="utf-8"?>
<demo.phone.card.MyPhoneCard
 xmlns:android="http://schemas.android.com/apk/res/android"
 android:id = "@+id/dialpad"
 android:paddingLeft="7dp"
 android:paddingRight="7dp"
 android:paddingTop="6dp"
 android:paddingBottom="6dp"
 android:layout_gravity="center"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:layout_marginBottom="5dp">

  <ImageButton android:id="@+id/one"
    android:src="@drawable/dial_num_1_no_vm"

    />

  <ImageButton android:id="@+id/two"
    android:src="@drawable/dial_num_2"
    />

  <ImageButton android:id="@+id/three"
    android:src="@drawable/dial_num_3"
    />

  <ImageButton android:id="@+id/four"
    android:src="@drawable/dial_num_4"
    />

  <ImageButton android:id="@+id/five"
    android:src="@drawable/dial_num_5"
    />

  <ImageButton android:id="@+id/six"
    android:src="@drawable/dial_num_6"
    />

  <ImageButton android:id="@+id/seven"
    android:src="@drawable/dial_num_7"
    />

  <ImageButton android:id="@+id/eight"
    android:src="@drawable/dial_num_8"
    />

  <ImageButton android:id="@+id/nine"
    android:src="@drawable/dial_num_9"
    />

  <ImageButton android:id="@+id/star"
    android:src="@drawable/dial_num_star"
    />

  <ImageButton android:id="@+id/zero"
    android:src="@drawable/dial_num_0"
    />

  <ImageButton android:id="@+id/pound"
    android:src="@drawable/dial_num_pound"
    />

</demo.phone.card.MyPhoneCard>
